Flexible LED Screens

Overview

Arech Flexible LED Screens Bend the shape, Expand imagination

Arech flexible led screens is one of the thinnest & lightest LED Display in the world with special materials and advanced technology. Nature soft LED Screen, nature flexible LED Screen, basically, the main material is a very soft, soft LED board, soft protection, to make Softly curved LED Screen.

Wide scenarios: showroom, retail mall, museum, stage rental

WHY ARECH

Why ARECH Flexible LED Screens Win the Curved Brief

Painting Your World with Pixels of Brilliance.

Slim and light enough to mount almost anywhere

Module thickness is 7 mm. Weight per module is 0.17 kg. The full system, including the iron support frame, comes in around 34 kg per square metre — light enough for ceiling installs, light enough for portable curved features, and slim enough to disappear into the architecture once content is running.

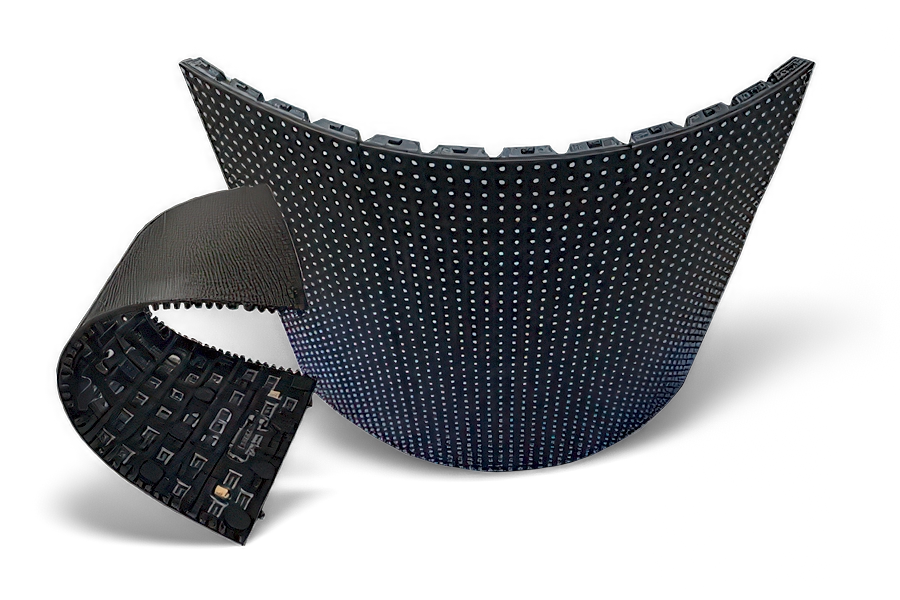

Genuinely bendable, not just gimballed

The substrate is a soft PCB, not a rigid PCB on hinged mounts. That means the module follows continuous curves — concave, convex, cylindrical, S-curve, dome — without breaking into faceted segments. The image stays smooth across the curve because the LED grid stays smooth across the curve.

Magnetic mounting that installs and services in minutes

Modules attach to the steel framework magnetically. No screw pattern, no cable clip, no rear access requirement. Install crews snap modules into position in sequence; service crews lift a single damaged module off the framework without disturbing its neighbours.

Cost-efficient route to a curved install

A custom rigid build for the same geometry runs through bespoke fabrication, bespoke calibration, and on-site fitting. The flexible series ships a standardised off-the-shelf module that handles the curve on the framework side. Engineering hours, fabrication cost, and install labour all come down.

SPECIFICATIONS

Flexible LED Screen Specifications

The complete spec ladder for the flexible series. Confirm the row that fits the install, then request the full PDF spec sheet.

Mechanical

Model	ACIDP01.6FF	ACIDP01.8FF	ACIDP02.5FF	ACIDP03.0FF	ACODP03.8FF	ACODP04.8FF
Pixel Pitch	1.6mm	1.8mm	2.5mm	3.0mm	3.8mm	4.8mm
LED Type	SMD	SMD	SMD	SMD	SMD	SMD
Module Dimension WxH	240x160mm & 1x1feet	240x160mm & 1x1feet	240x160mm & 1x1feet	240x160mm & 1x1feet	240x160mm & 1x1feet	240x160mm & 1x1feet
Cabinet Dimension WxH	Customized Cabinet	Customized Cabinet	Customized Cabinet	Customized Cabinet	Customized Cabinet	Customized Cabinet
Cabinet Material	Customized	Customized	Customized	Customized	Customized	Customized
Service Type	Front	Front	Front	Front	Front	Front
Brightness	800-1000nits & 5500-6000nits	800-1000nits & 5500-6000nits	800-1000nits & 5500-6000nits	800-1000nits & 5500-6000nits	800-1000nits & 5500-6000nits	800-1000nits & 5500-6000nits
Processing	16 bit	16 bit	16 bit	16 bit	16 bit	16 bit
Colors	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion	281 trillion
Hor. Viewing Angle	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)
Vert. Viewing Angle	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)	140° +/-5° (@50% brightenss)
Power Consumption	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)	280 W/m2(typ.)
Refresh Rate	Adjustable	Adjustable	Adjustable	Adjustable	Adjustable	Adjustable
IP Rating	IP30/ IP65	IP30/ IP65	IP30/ IP65	IP30/ IP65	IP30/ IP65	IP30/ IP65
Operating Power Voltage	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz	100-240V / 50-60Hz
Operating Temperature	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C	-10°C to +40°C
Operating Humidity	-10° to 90°	-10° to 90°	-10° to 90°	-10° to 90°	-10° to 90°	-10° to 90°
Standard	CE/ FCC	CE/ FCC	CE/ FCC	CE/ FCC	CE/ FCC	CE/ FCC
Warranty	2 years	2 years	2 years	2 years	2 years	2 years

Achievable geometries

Concave curves — alcoves, curved feature walls, hollow lobby features.
Convex curves — protruding feature walls, exterior pillars, brand-mark surfaces.
Cylindrical column wraps — full 360° column displays.
S-curve and wave surfaces — continuous double-curve feature walls.
Dome and barrel-vault ceilings — immersive ceiling pieces in lounges, exhibits, brand spaces.
Free-form sculptural pieces — bespoke art commissions, immersive lobby sculptures.
Circular logo rings — branded ring fixtures, signage halos.

Service architecture

Front-side module access. Each module lifts off the steel frame magnetically — service from the front face without disturbing adjacent modules.
Single-module swap. A damaged or aged module is replaced individually, with no penalty to the surrounding curve.
No proprietary tools. Standard magnetic lifter, standard mechanical adjustment.

APPLICATIONS

Where a Flexible LED Screen Earns Its Place

Display the Extraordinary.

Immersive retail and brand environments

Flagship-store column wraps, curved feature walls behind point-of-sale, S-shaped fitting-room transition pieces, brand sculpture lobbies. Customers spend more time in stores that feel designed; a flexible LED screen turns the building's surface into the design.

Museums and exhibition centres

Curved narrative walls in gallery sequences, dome-ceiling immersive rooms, free-form sculptural exhibits, circular projection alternatives that run at fixed pitch and need no projector calibration. Long-life flexible installations age well in venues that programme for years rather than seasons.

Architectural and interior design

Lobby feature curves, undulating reception walls, ceiling installations that follow the building's geometry, curved bar-fronts in hospitality, sweeping facade-integration pieces. Architects choose flexible LED because it integrates rather than imposes — the curve sits inside the architecture.

Stage design and live productions

Curved concert backdrops, immersive set pieces, sculptural performance art, fashion-show walkways with continuous side walls. Although the rental product family covers most touring needs, a permanent flexible install at a residency venue runs the show calendar without nightly rigging.

Hospitality and entertainment venues

Hotel feature walls, restaurant ceiling pieces, nightclub immersive curves, casino entrance arches. Ambience design is a competitive lever in hospitality, and a curved LED canvas reframes what the room can do at scale.

Corporate and VR / simulation centres

High-end conference room curved walls, visitor-centre immersive rooms, VR-lounge curved projection alternatives. The same 7 mm-thick module that decorates a museum carries the resolution and refresh rate corporate venues need for video conferencing and visualisation.

01

Send a sketch or rendering.

A simple drawing of the desired shape and a target screen-area in square metres is enough to start. The engineering team translates that into a framework spec, a module count, and a pitch recommendation.
02

Prepare the framework on site.

Installation runs on a flat or smoothly curved ferromagnetic steel framework that the install team prepares to the dimensions our engineering team specifies. Cabling channels and ventilation gaps are part of the framework brief.
03

Magnetic install.

Modules attach to the ferromagnetic surface by magnetic adhesion. A two-person install crew can clad several square metres per hour once the framework is ready. The modules conform to the curve as they go on.
04

Calibration and content handover.

Each module ships pre-calibrated; the wall is calibrated again as an assembled surface after install. Content handover hands off a working installation, a calibration profile, and an engineer-on-call number for the warranty period.

Send the brief — and we will route it to the engineering desk that handles curved installs.

What Makes the Flexible Substrate Different

A handful of design choices that distinguish the ARECH flexible LED screen from generic flexible-LED imports.

Soft PCB with engineered bend radius. The substrate is rated to a continuous bend radius rather than a single fold. The same module is reusable across multiple installs — taking it off one framework and remounting it on another is part of the design intent.
Soft magnetic module housing. The housing flexes with the PCB rather than constraining it. Generic flexible LED that uses rigid housing tends to micro-fracture at the housing edges over thermal cycles — the soft housing eliminates that failure mode.
Iron-frame support concept. The structural load lives in the framework, not in the module. The module is a finishing surface; the framework is the structural backbone. This split makes the module replaceable as a consumable and the framework reusable as infrastructure.
Pitch-agnostic mechanics. The same module dimensions span P2 to P6 indoors. The framework spec scales with the module — same install pattern across the pitch range.

01

Indoor LED video wall installed in a retail flagship lobby — fine pixel pitch for close-viewing.

Indoor LED Screen

Flat indoor installation — lobby video walls, retail flat back-walls, broadcast studio backdrops.

Explore indoor

02

Outdoor LED billboard on a building facade — high brightness, IP-rated weatherproof cabinet.

Outdoor LED Screen

Open-air weatherproof installation — billboards, building facades, public-square screens.

Explore outdoor

03

Fine-pitch HD LED wall in a luxury showroom — seam-free image at arm-length viewing.

HD Wall LED Display

Sub-2 mm pitch close-viewing on a flat plane — control rooms, broadcast walls at arm's reach.

Explore HD wall

04

Rental LED Display

Temporary touring or event installation — concerts, festivals, expo booths.

Explore rental

What is the difference between a standard LED screen and a flexible LED screen?

A standard LED screen uses rigid PCBs inside rigid cabinets, which limits the panel to flat installations. The ARECH flexible LED screen uses a soft (bendable) PCB inside a soft magnetic module housing. The modules physically bend, which lets the screen follow concave curves, convex curves, full cylindrical column wraps, S-shaped surfaces, and free-form geometries that rigid cabinets cannot reach.

Can the ARECH flexible LED screen be used outdoors?

Yes. The flexible series ships in indoor and outdoor variants. The outdoor variant adds weather protection at the module and seam level for facade, atrium, and exterior installations while keeping the same bendable geometry. Specify the install environment at the briefing stage so we route the project to the correct variant.

What pixel pitch should I pick for a flexible LED screen?

Pitch follows the closest expected viewer. Close-up retail or museum exhibits at 1–2 metres → P2 or P3. Mid-range lobby or hospitality features at 3–4 metres → P4. Large curved facades read from across a plaza → P6 and above. Finer pitches are available on request when the brief calls for sub-2 mm flexible work.

Which shapes can a flexible LED screen actually form?

Cylindrical column wraps, full-circle pillars, concave alcoves, convex feature walls, S-shaped and wave surfaces, dome and barrel-vault ceilings, circular logo rings, and free-form sculptural pieces. Any shape achievable with a smooth-curve ferromagnetic framework is in scope; sharp corners need a small flat transition module or a discrete cut break.

Is a flexible LED screen difficult to maintain after installation?

Not at all. Modules attach magnetically to the steel frame, so any individual module can be lifted out from the front for inspection or replacement without dismantling adjacent modules or stripping the surrounding wall. Service tooling is a magnetic lifter, not a cabinet-disassembly kit.

How cost-effective is a flexible LED screen compared with a rigid custom build?

For any curved or shaped install, a flexible LED screen is typically the cheaper route. Building a curved video wall with custom-fabricated rigid cabinets means bespoke metalwork, bespoke calibration, and complex labour at install. The flexible series provides a standardised, off-the-shelf bendable module — the curve happens at the framework, not at the cabinet shop. Full warranty terms on the warranty page.
